Amiga 500 RGB To Digital Video Output Adapter For HDMI-Compatible devices

Amiga 500 RGB To Digital Video Output Adapter For HDMI-Compatible devices

$20.00 USD
$20.00 USD
Sale Sold out

Amiga 500 RGB To Digital Video Output Adapter For HDMI-Compatible devices

  • Many thanks to hoglet67's (David Banks) great design! For more details please visit GitHub project: RGBtoHDMI
  • No soldering skill required.
  • What you will get:
            1. One RGBtoHDMI Adapter
            2. One 2.54mm Jumper cap
  • Requirements:
.             1. Raspberry Pi Zero
              2. Micro SD card
              3. HDMI Mini to HDMI A cable
  • Optional: You could attach a push button to pin header on the top of the board. It's not necessary so we do not provide it.

  • Quick installation:

    - remove Denise chip from your Amiga

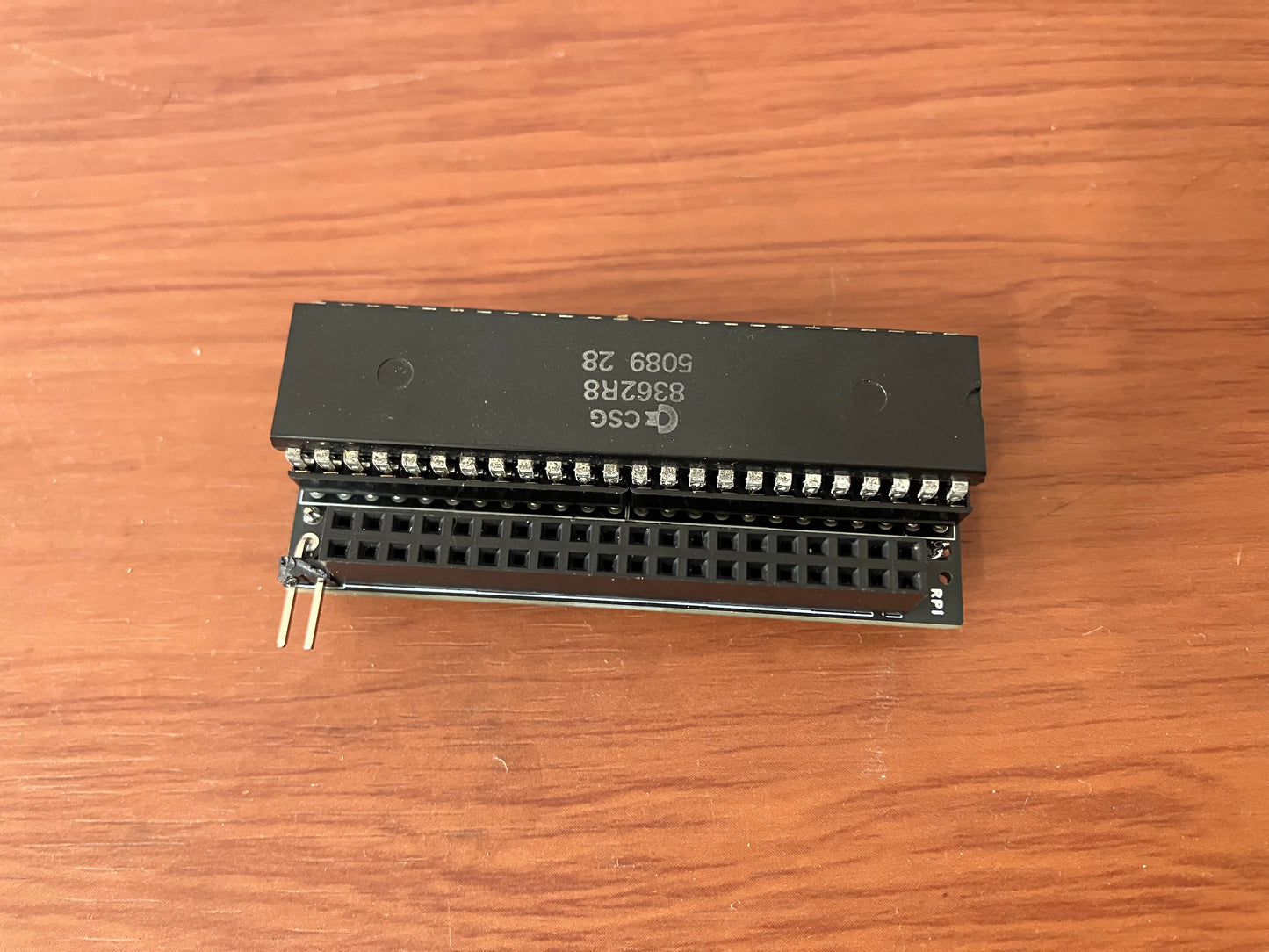

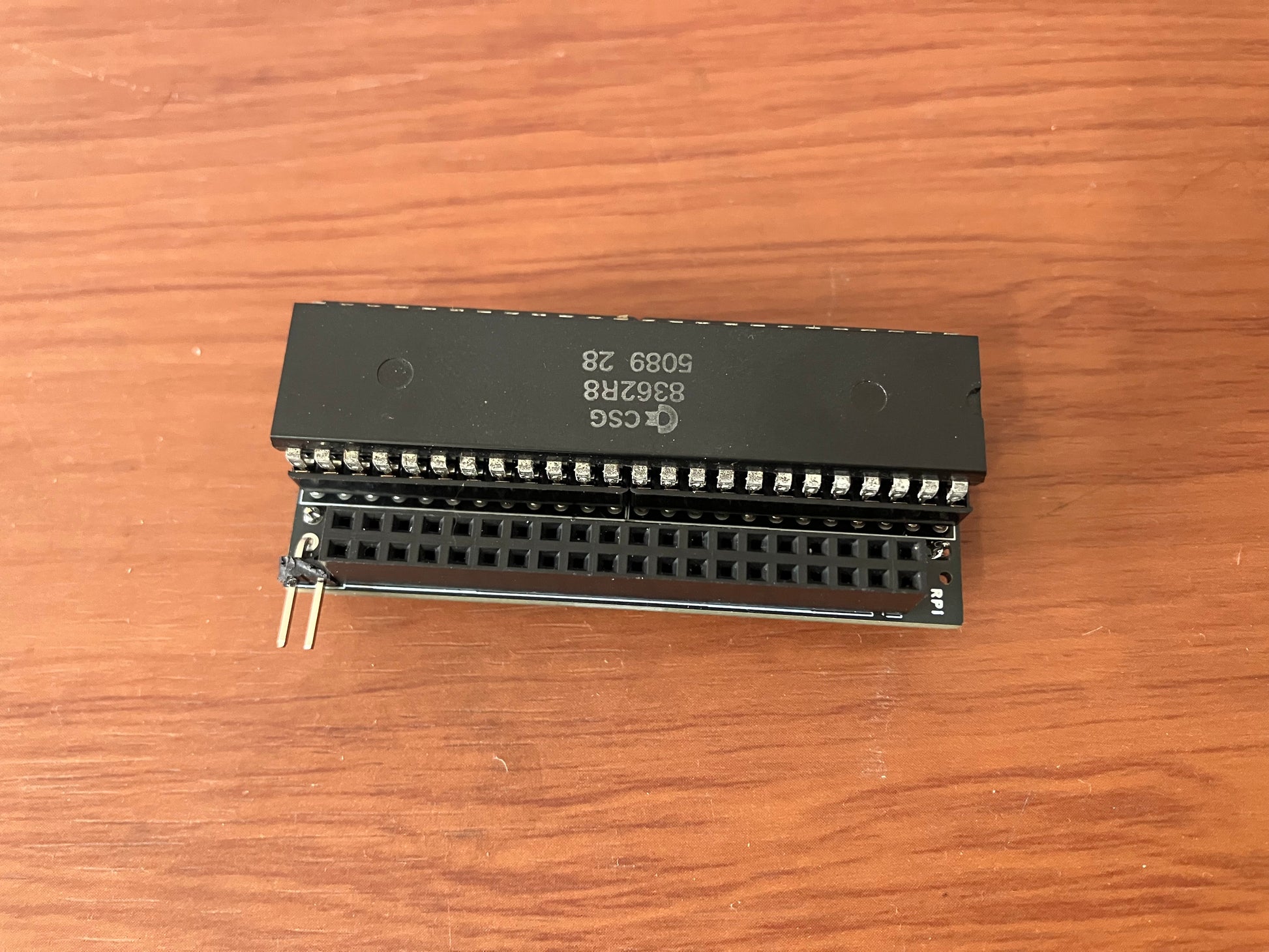

    - put Denise chip into the RGBtoHDMI adapter

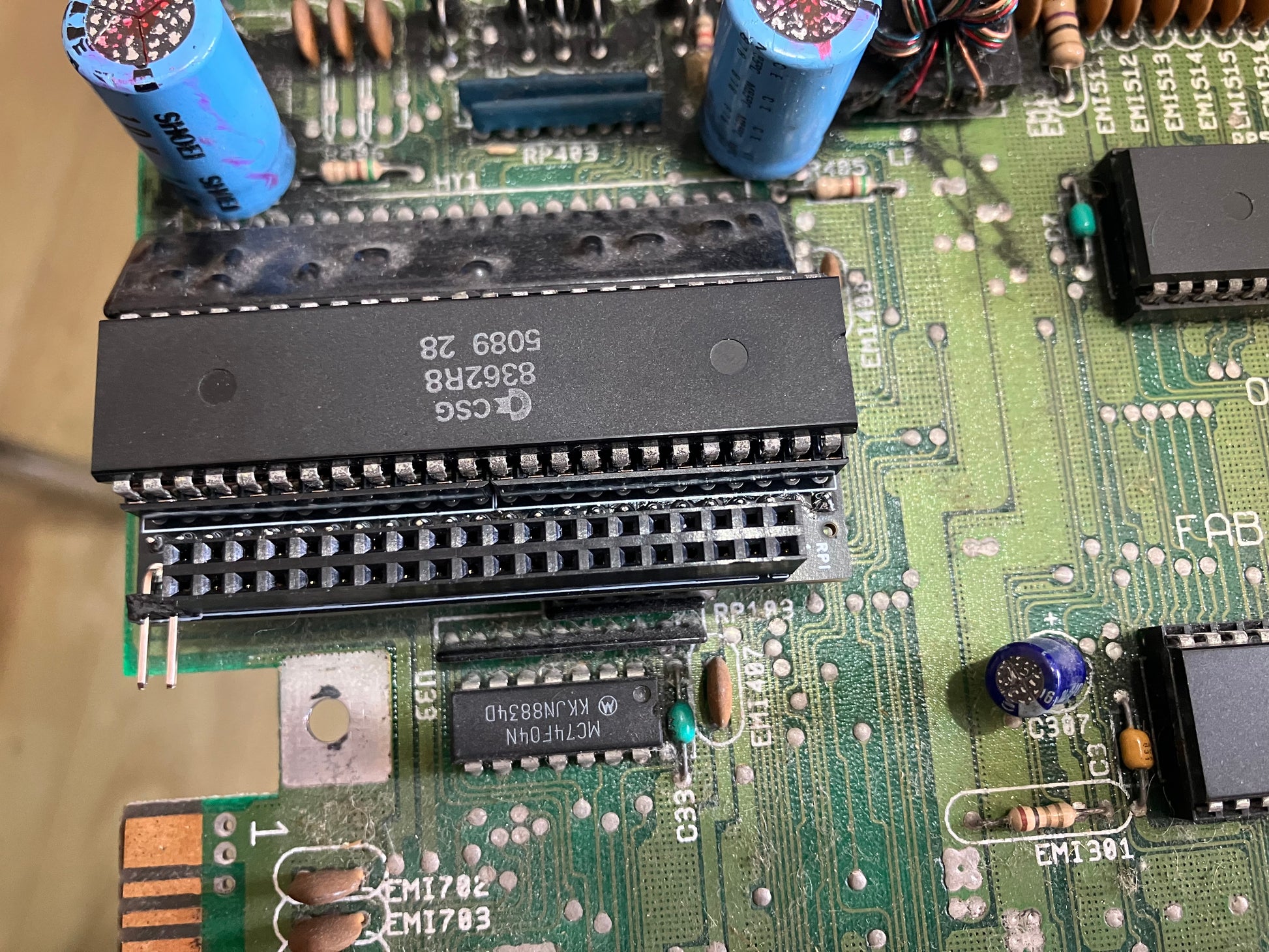

    - put RGBtoHDMI together with Denise chip into Denise socket on your Amiga 500 motherboard

    - connect button on the cable into RGBtoHDMI adapter

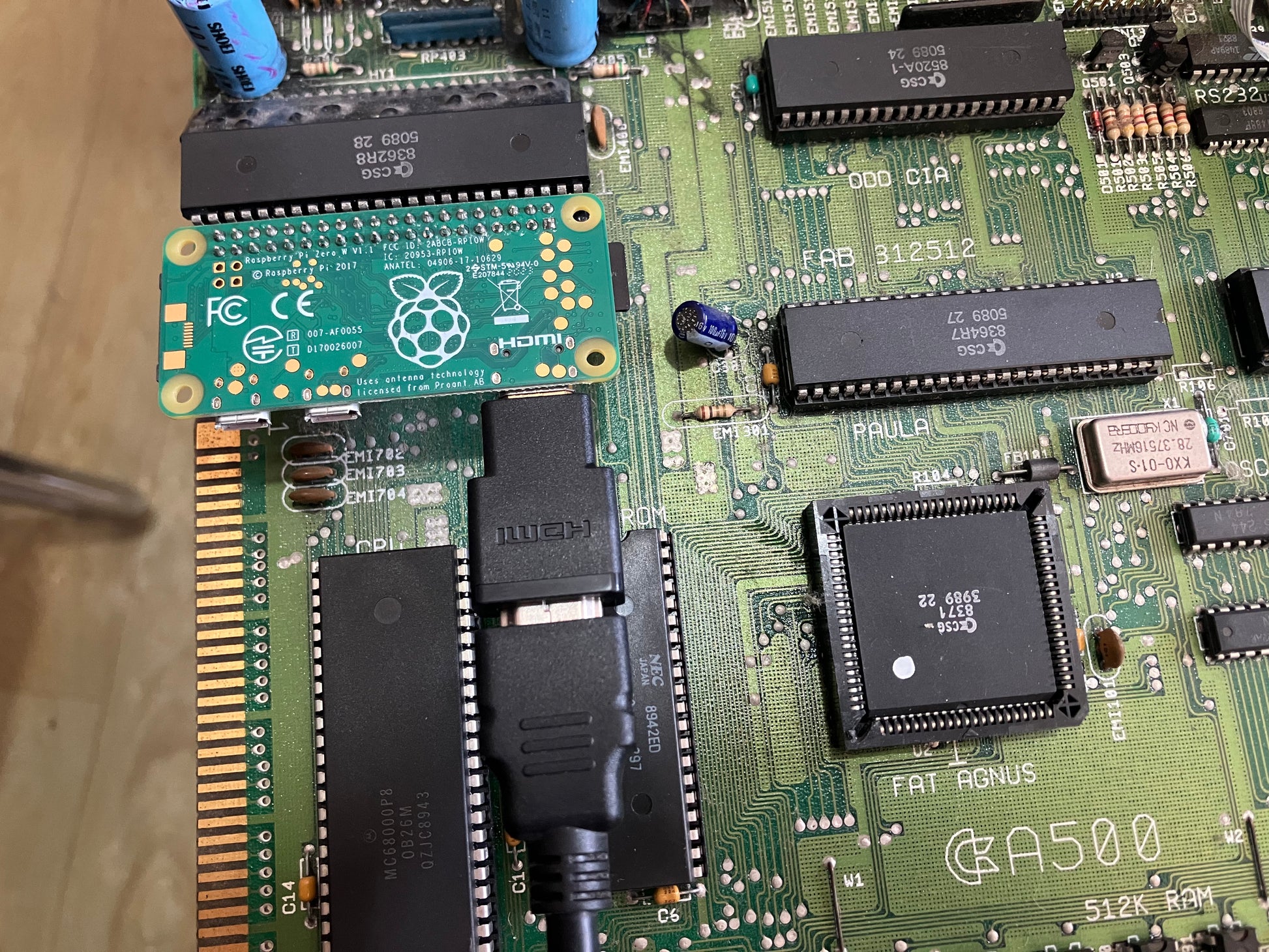

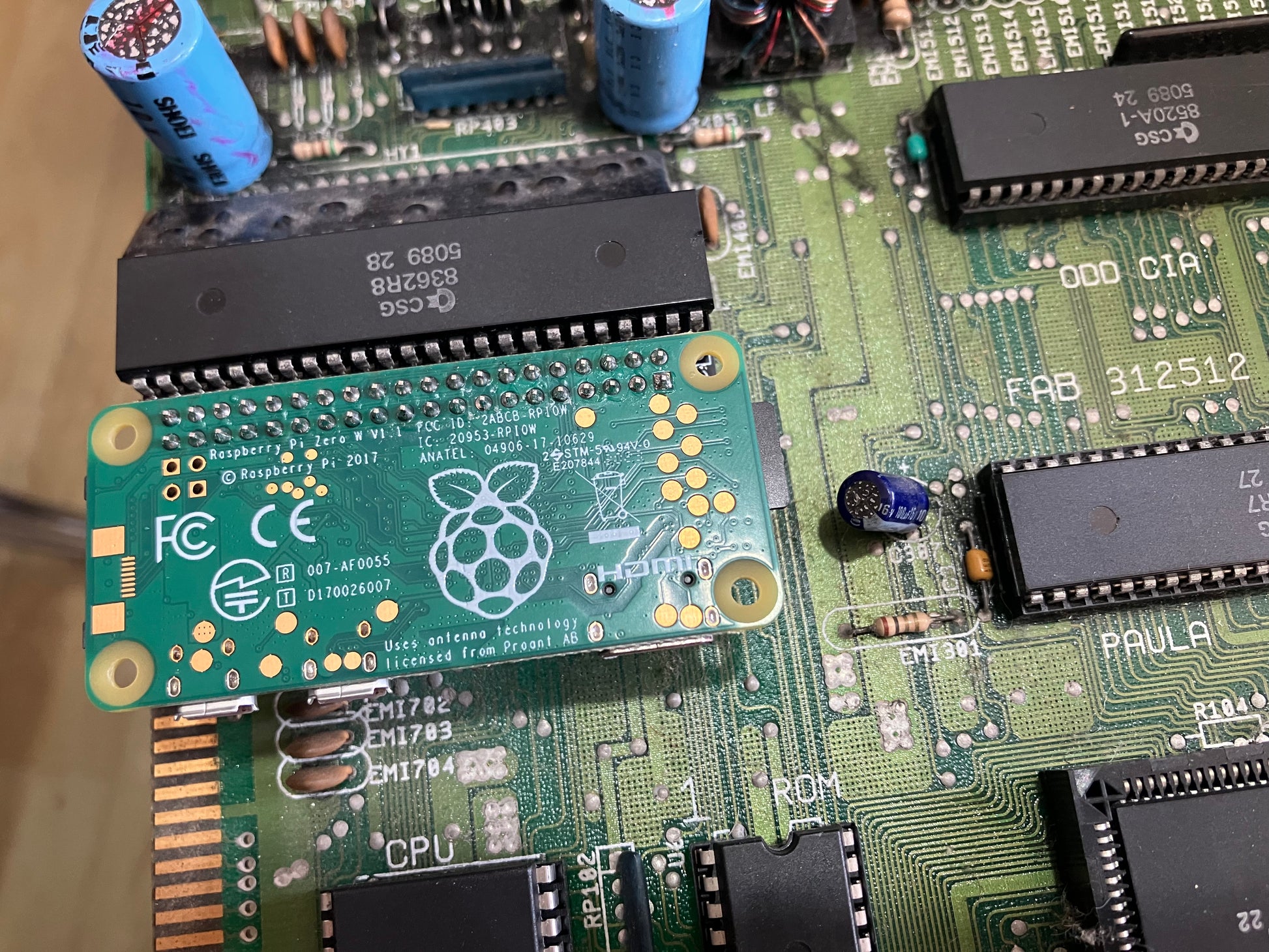

    - put Raspberry Pi Zero into RGBtoHDMI adapter

    - put preloaded micro SD card into Raspberry Pi Zero micro SD slot

    - connect mini HDMI cable

  • If you are using a rev.6 motherboard, please note that there are several plug-in capacitors next to the denise chip, which may contact the adapter's solder joints. Please be sure to bend these capacitors before installation.
Special thanks to:
hoglet67 - https://github.com/hoglet67/RGBtoHDMI

Thanks for author's contribution! Respect!
