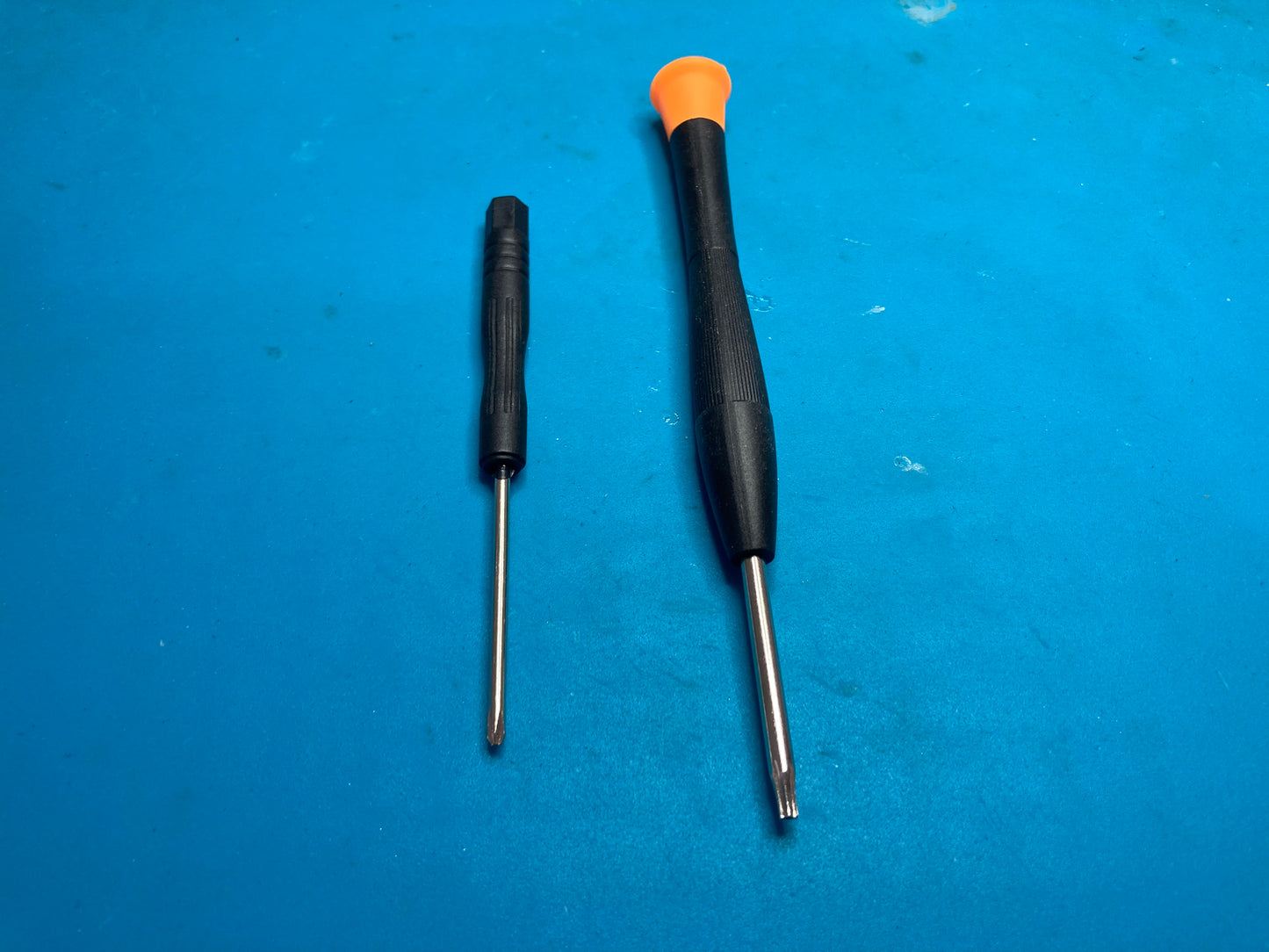

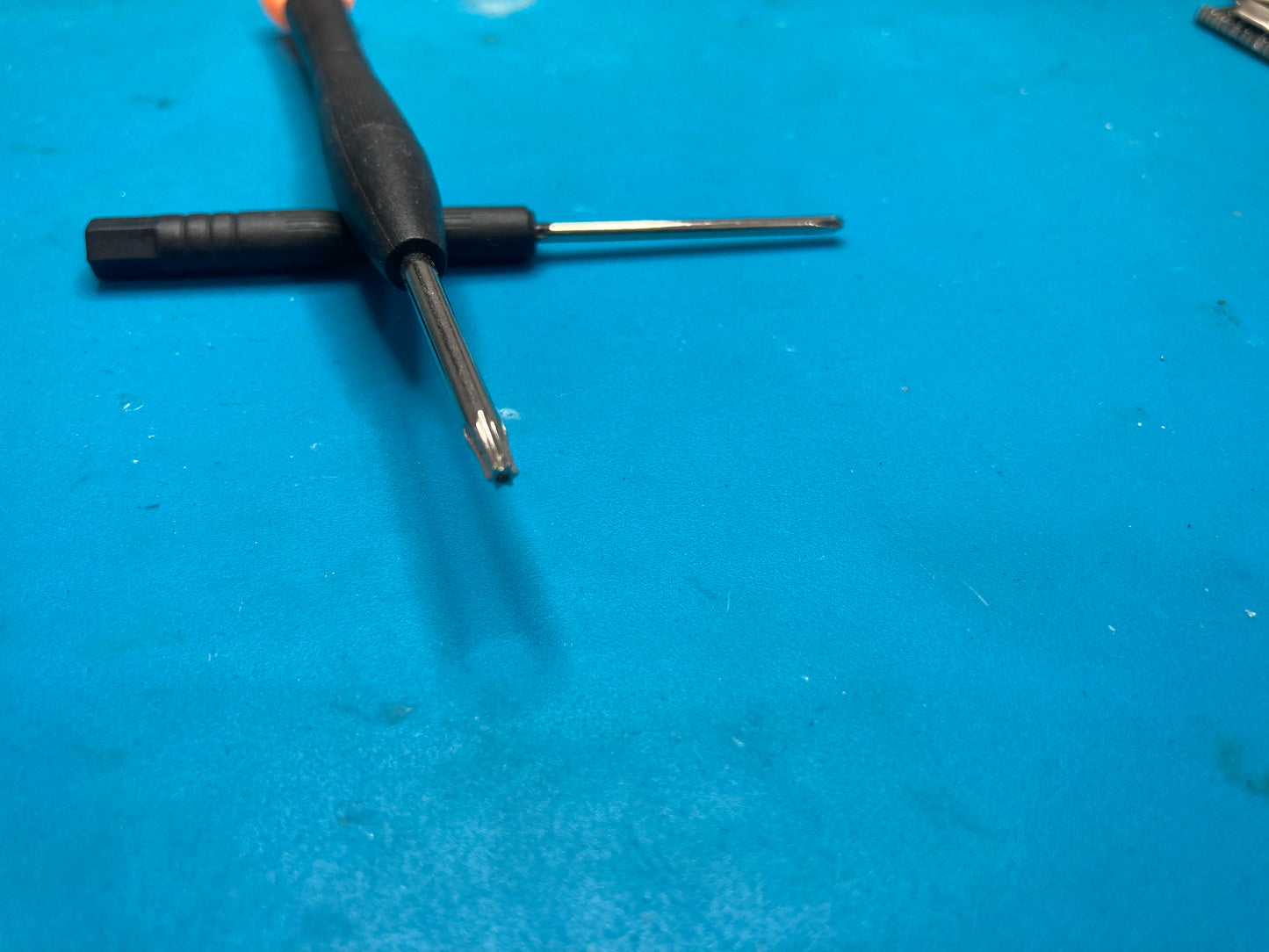

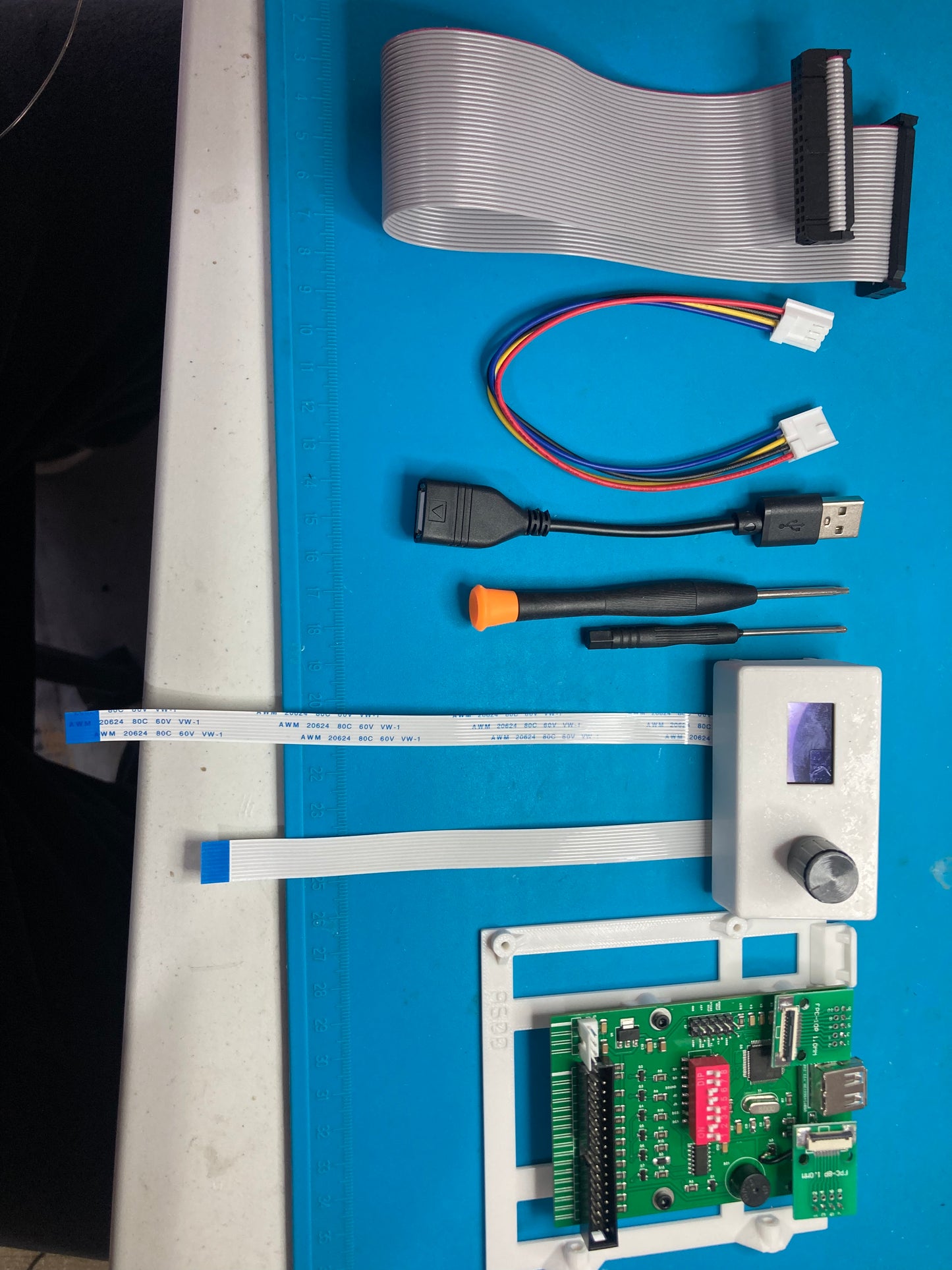

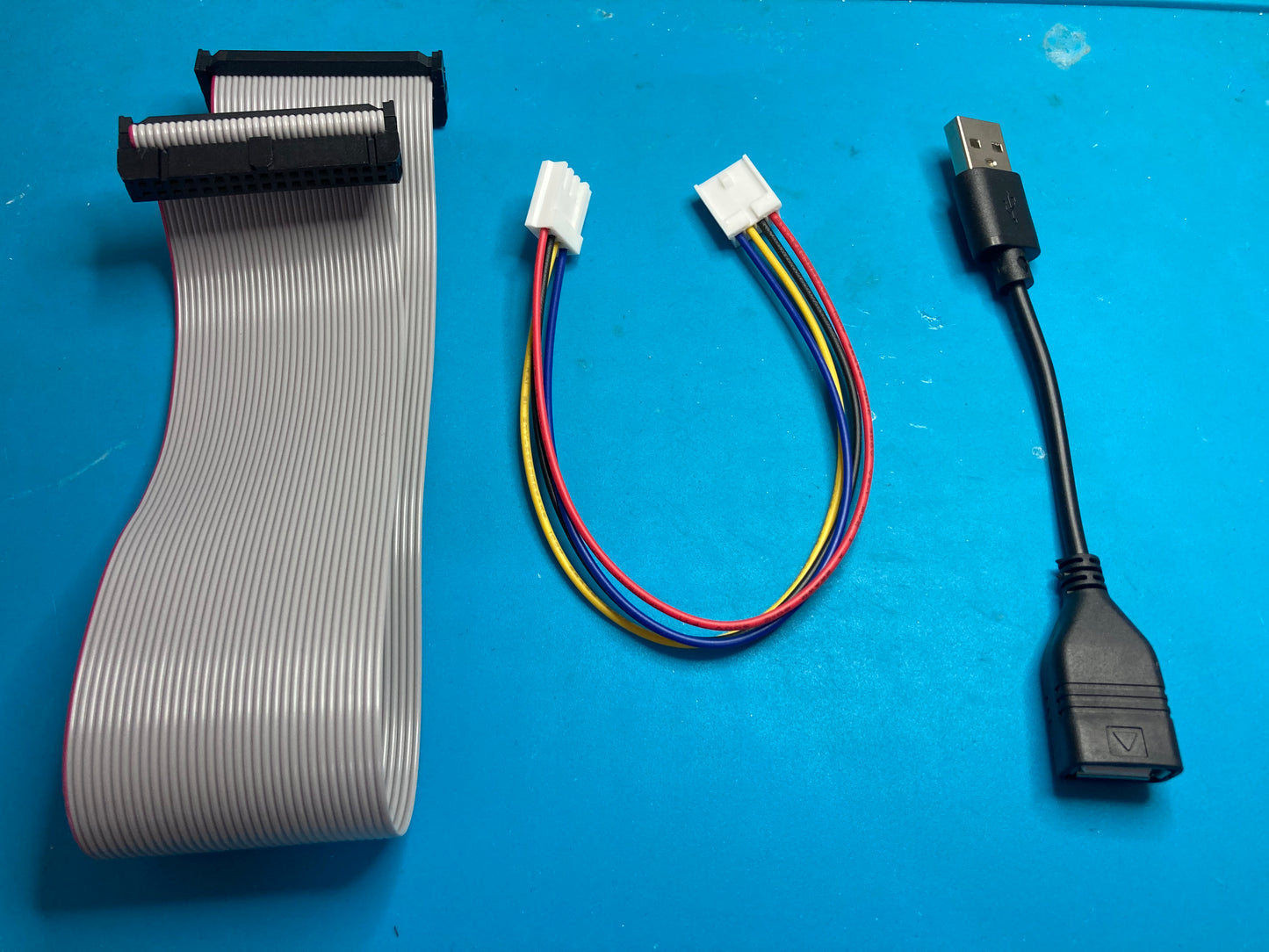

3D Printed Support bracket. PC sound speaker Flash Floppy 3.41 0.96’ large OLED screen Rotary Encoder for selecting ADF images better then buttons Backup floppy cable and 4pin wires The tools for teardown
We will provide you complete kit for installing the Gotek floppy emulator. Here’s the instructional video made by myself:
The bracket is fit to Amiga 600 only. If you are using another model, welcome to search in my store.
It’s an internal floppy drive. If you need a external one, our store can also provide for Amiga 500+, Amiga 600 and Amiga 1200. (External floppy drive works on Amiga 500 but you need a DF0/DF1 boot selector)
Special thanks to:
Keir Fraser -- The author of flashfloppy project. It makes your gotek based floppy drive emulator work well. https://github.com/keirf/flashfloppy (Public Domain)
Richard Rozehnal -- The author of Gotek Floppy Disk Emulator V2. The PCB is designed very well. https://github.com/RichardRozehnal/Gotek-Floppy-Disk-Emulator-V2 (GPL-3.0 license)

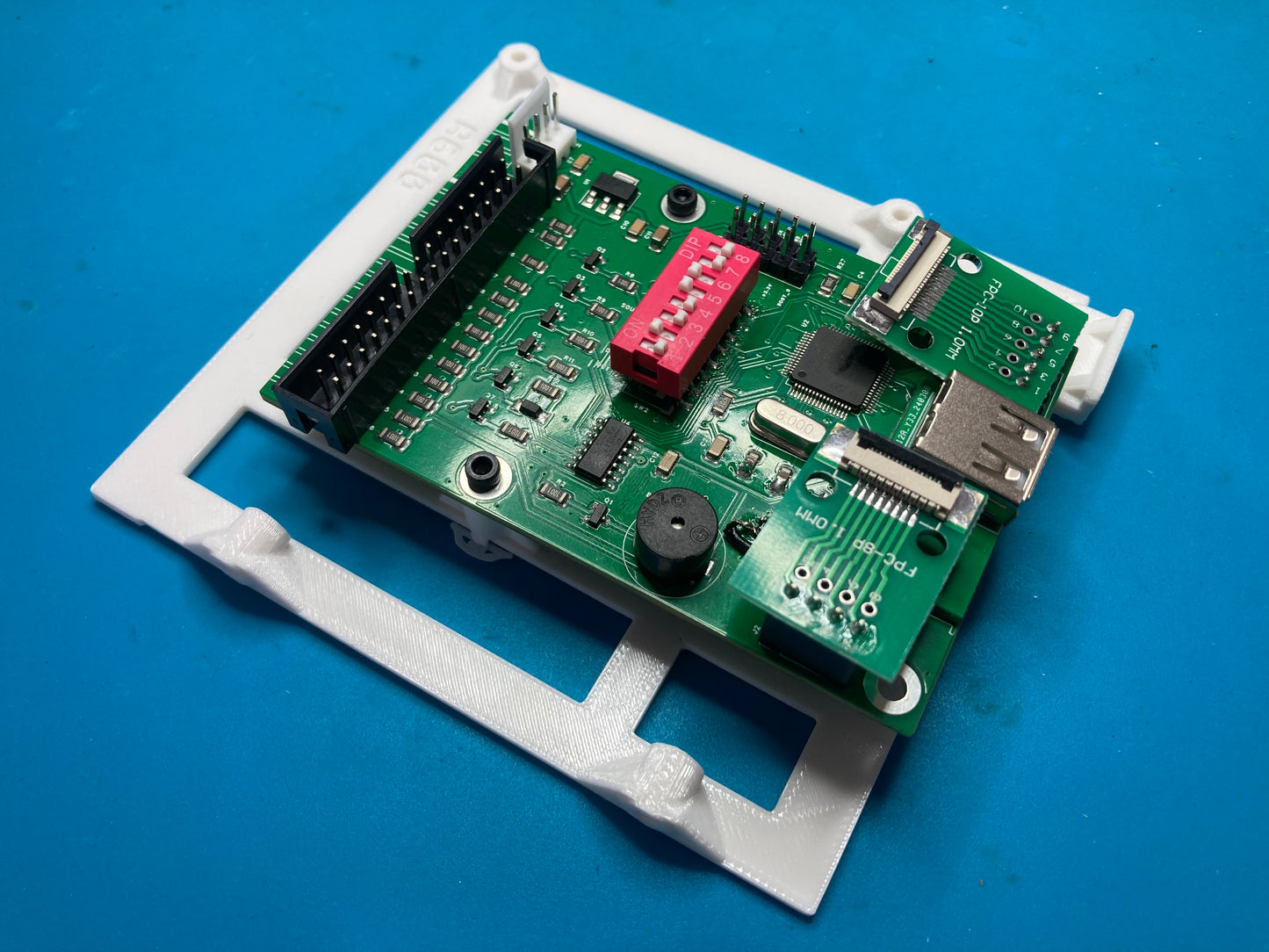

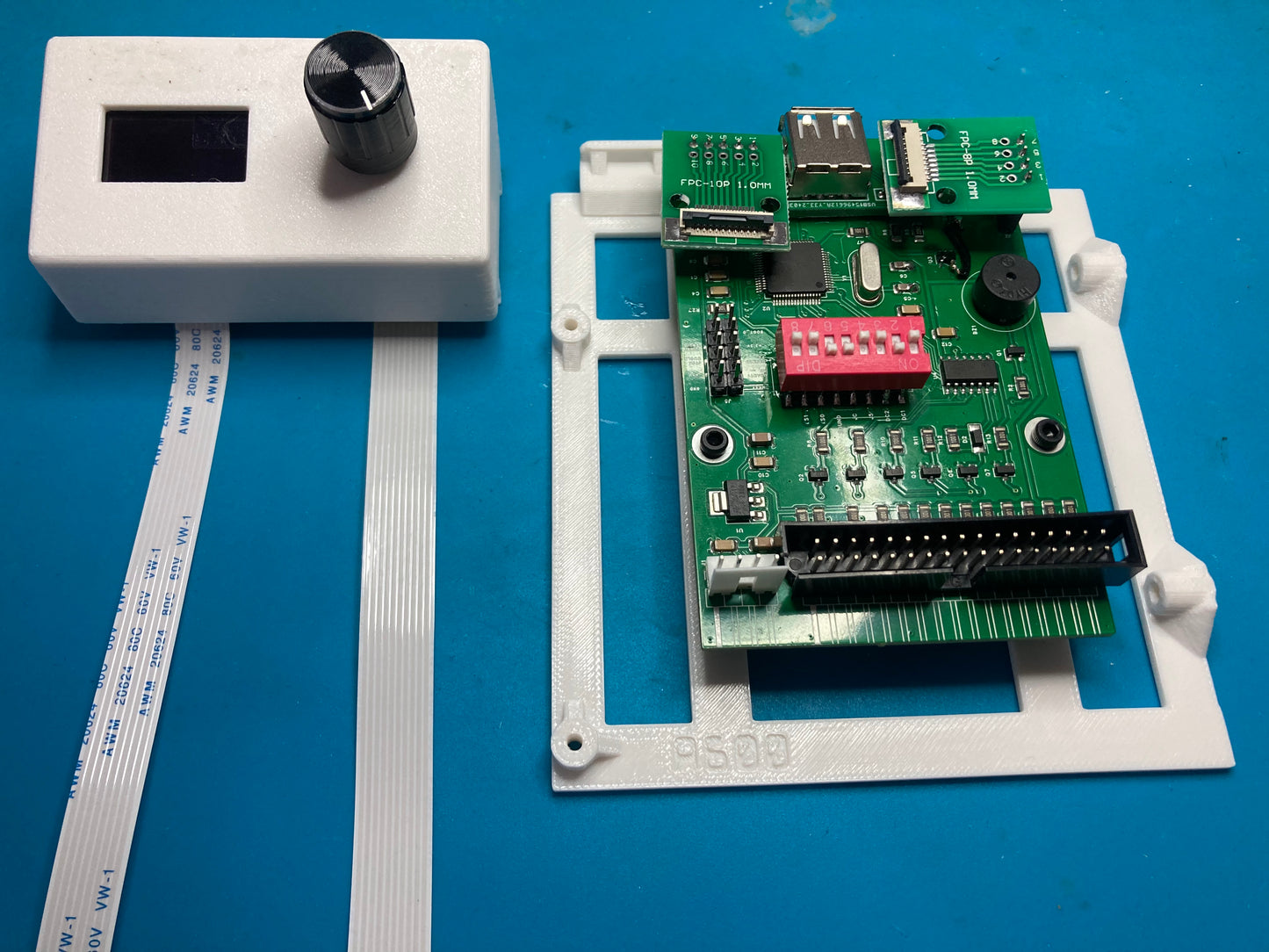

Btw I made some changes to the layout. The OLED pin position on the PCB is opposite to the original design. I also adjusted the USB female port to fit the 3D printing bracket. You could download the Gerber file from here: https://github.com/BitsRetro/Gotek-Floppy-Disk-Emulator-V2/blob/main/Gerber_Gotek_Floppy_Disk_Emulator_V2_adjusted.zip (GPL-3.0 license)
_CrazyBob_ -- The author of Amiga 600 Gotek USB bracket. It’s 3d printed. https://www.thingiverse.com/thing:2745095 (Creative Commons - Attribution - Share Alike license)
As the pcb layout is different, I made some changes to the bracket. You could download from here: https://www.thingiverse.com/thing:6544014 (Creative Commons - Attribution - Share Alike license)
Oleg Mishin -- The author of GotekFlashFloppy. It’s a different designation for gotek floppy emulator. The 3d printed control panel is great! https://github.com/OlegMishin/GotekFlashFloppy (GPL-3.0 license)

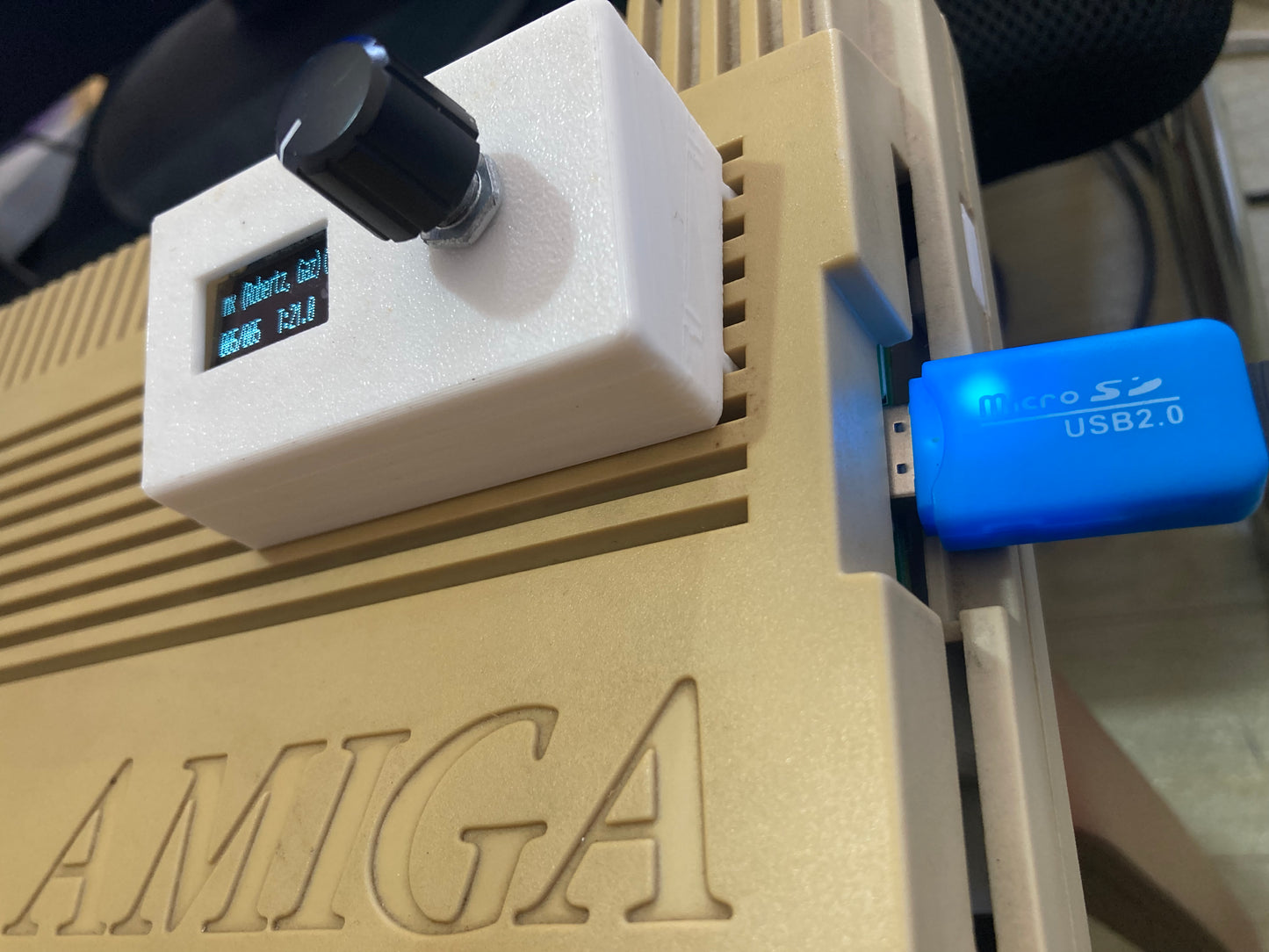

I adjusted the Rotary & Oled panel to fit the Amiga cover perfectly. Here is the file: https://github.com/BitsRetro/GotekFlashFloppy (GPL-3.0 license)
Gary Roberts -- The author of Amiga game ‘Tanx’. It’s a highly recommended game. https://openretro.org/amiga/tanx/files (Public Domain)
