Interface Cable Adapter for Gotek External FDD Connection for Amiga 500 600 1200.
With this interface you can put your Gotek on top of your Amiga case. You don't need 2 cables anymore (for data and power). Data signal and power connection are in one interface here.

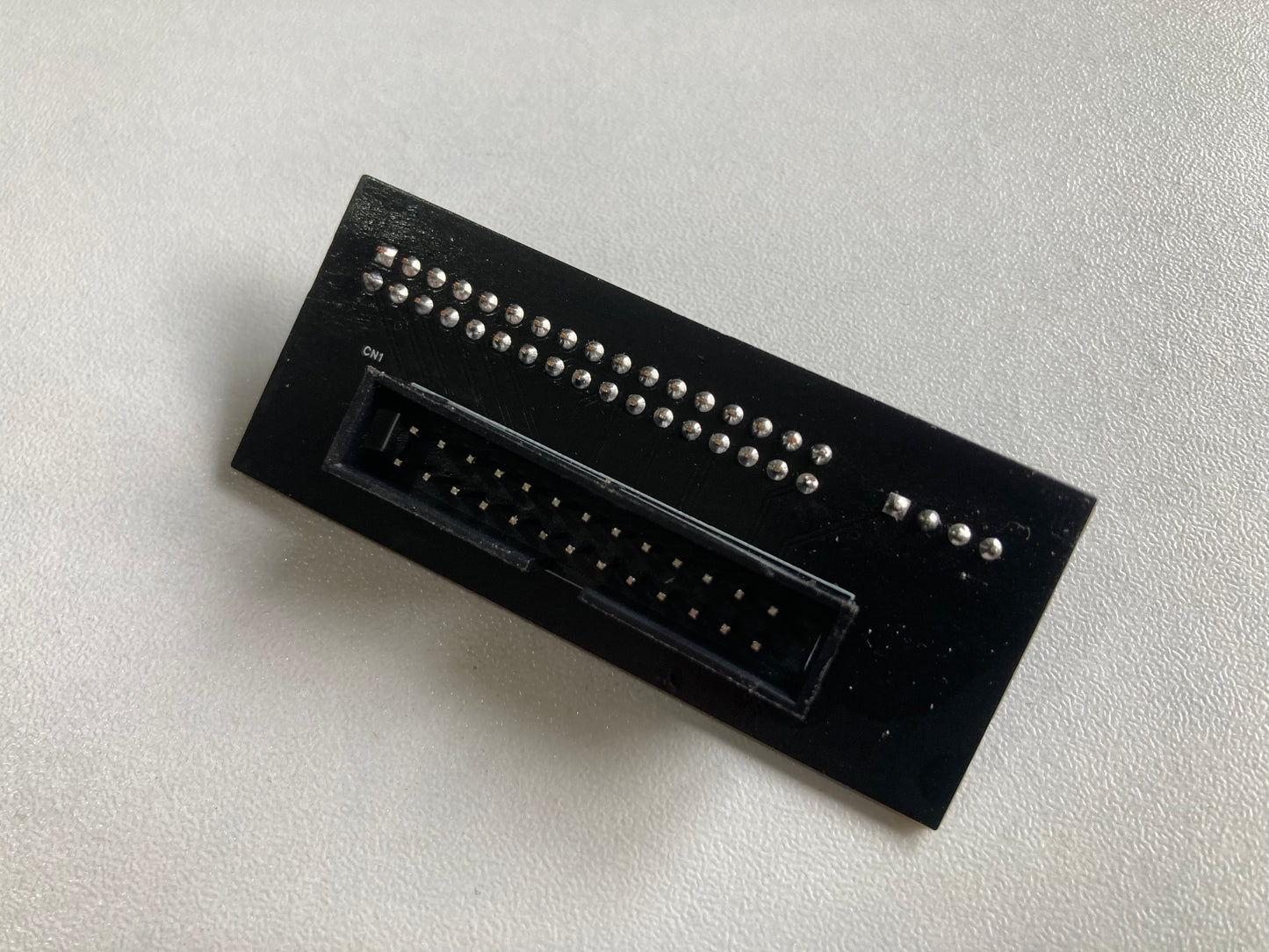

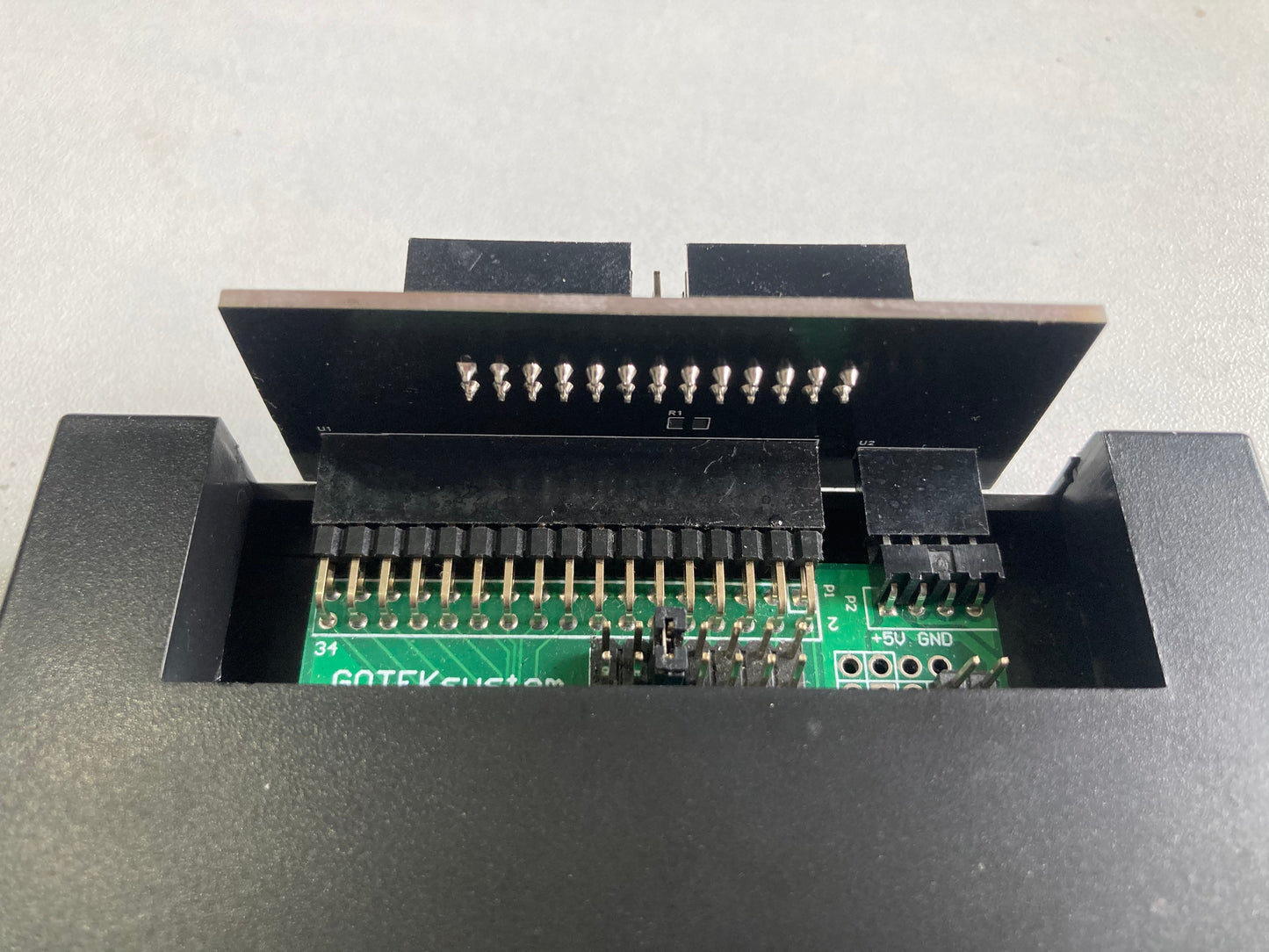

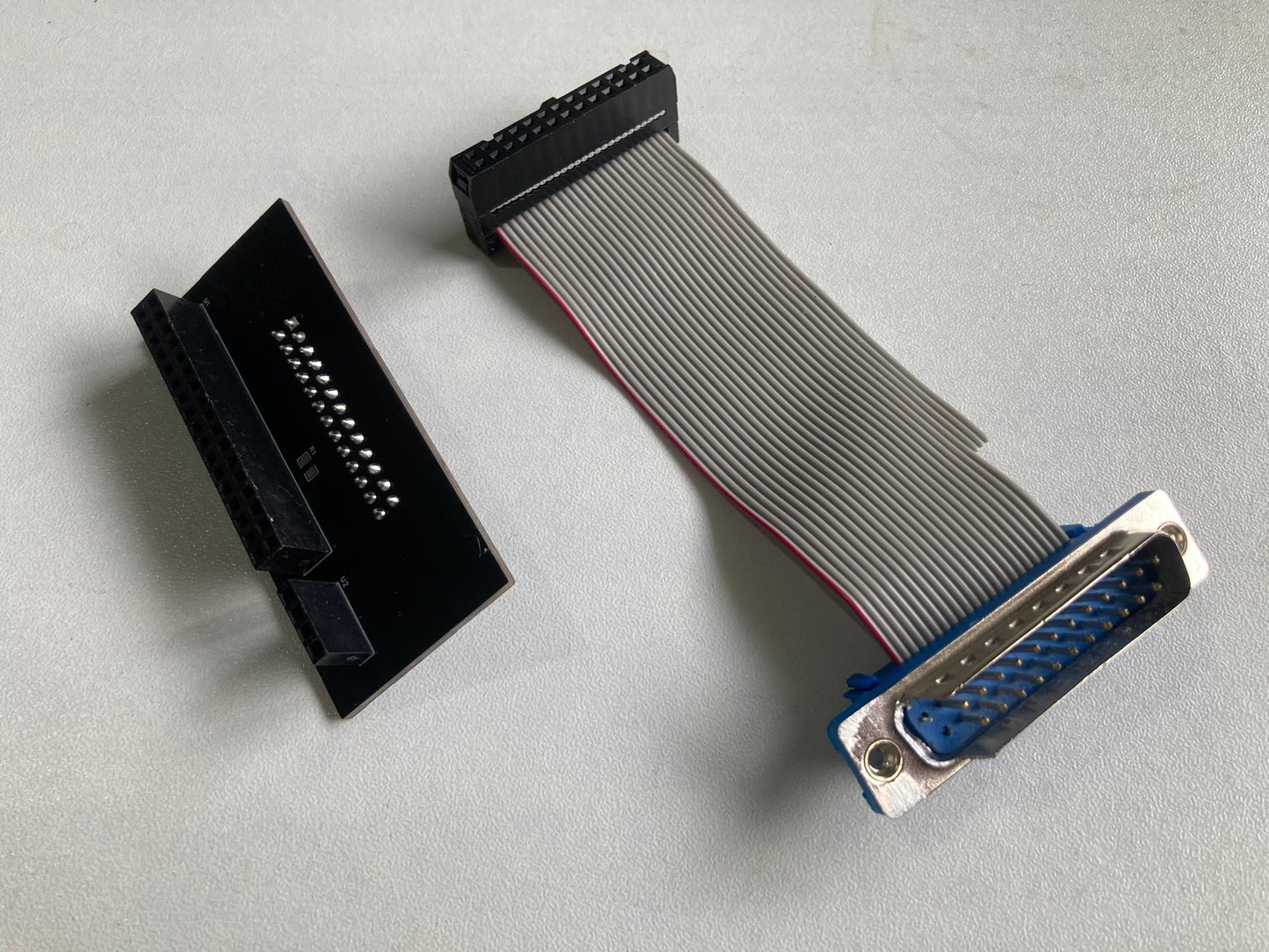

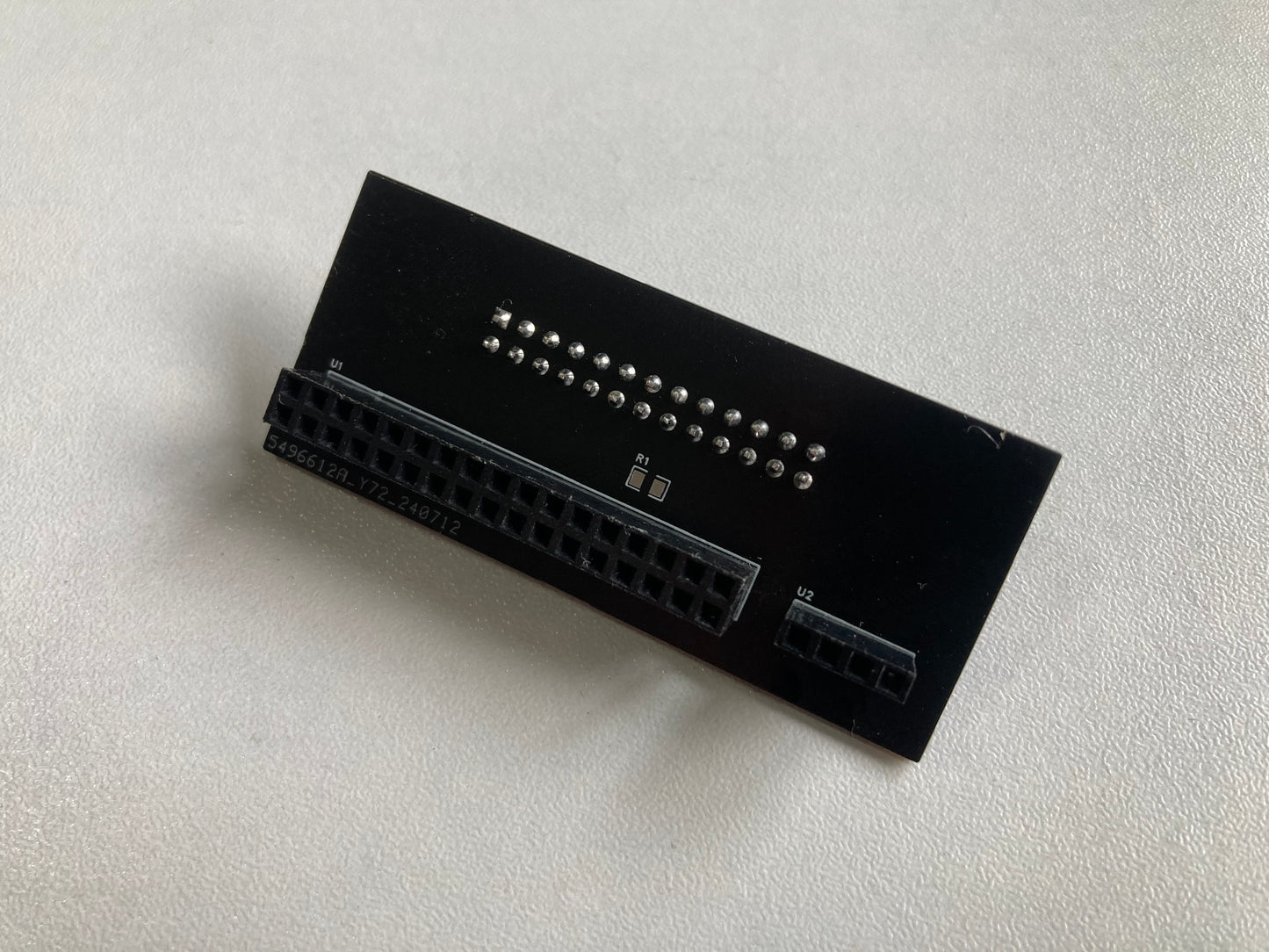

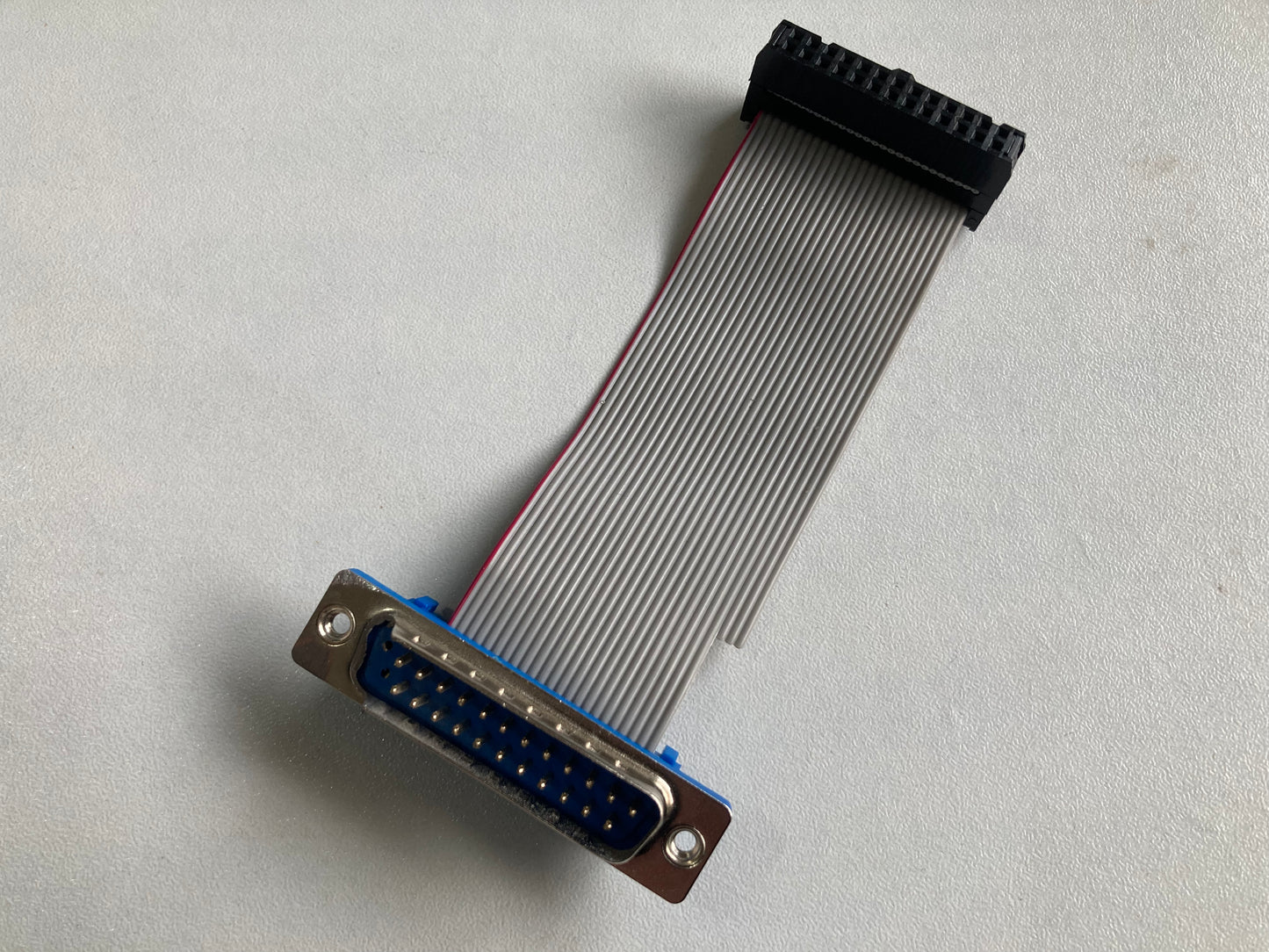

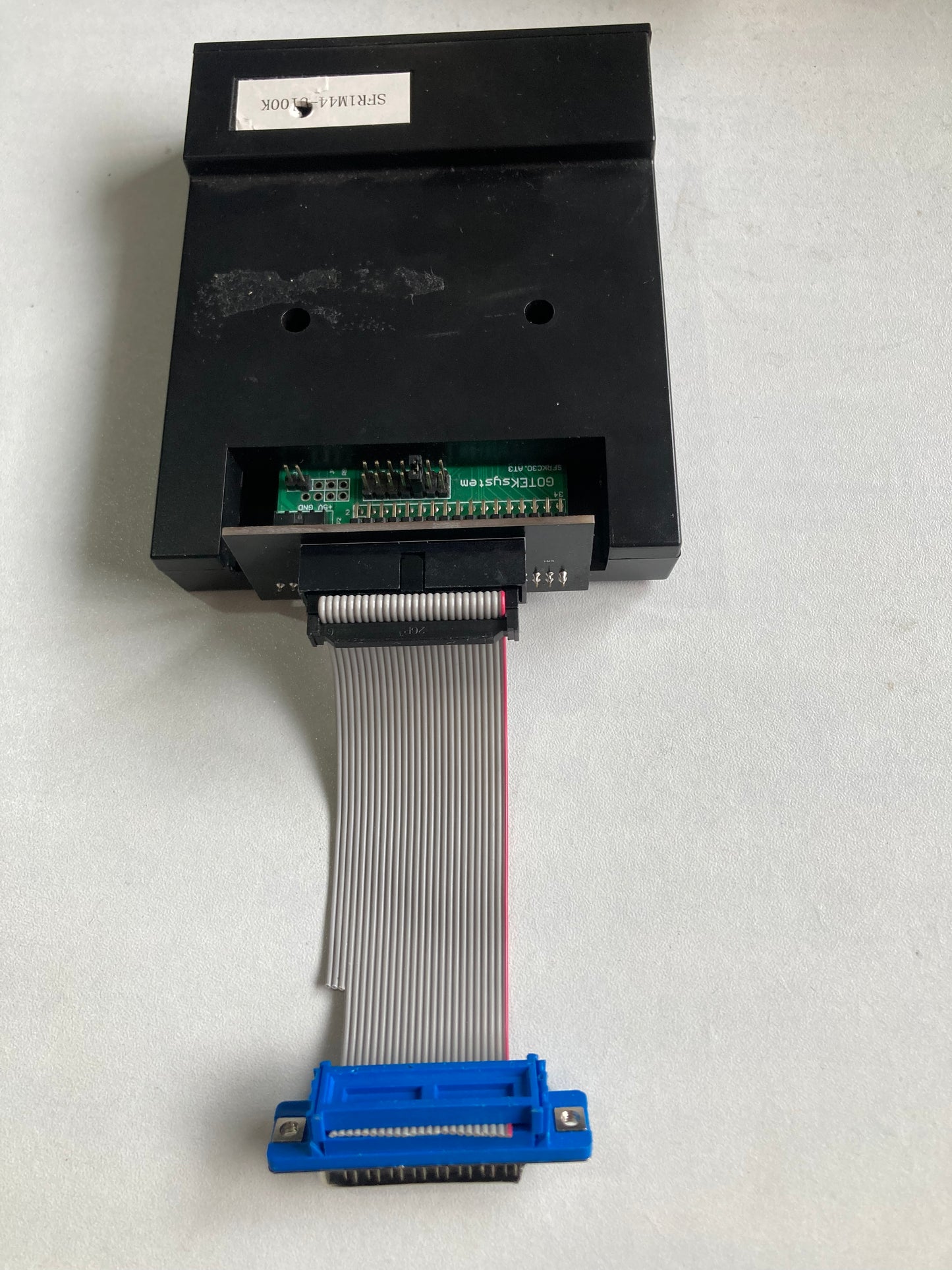

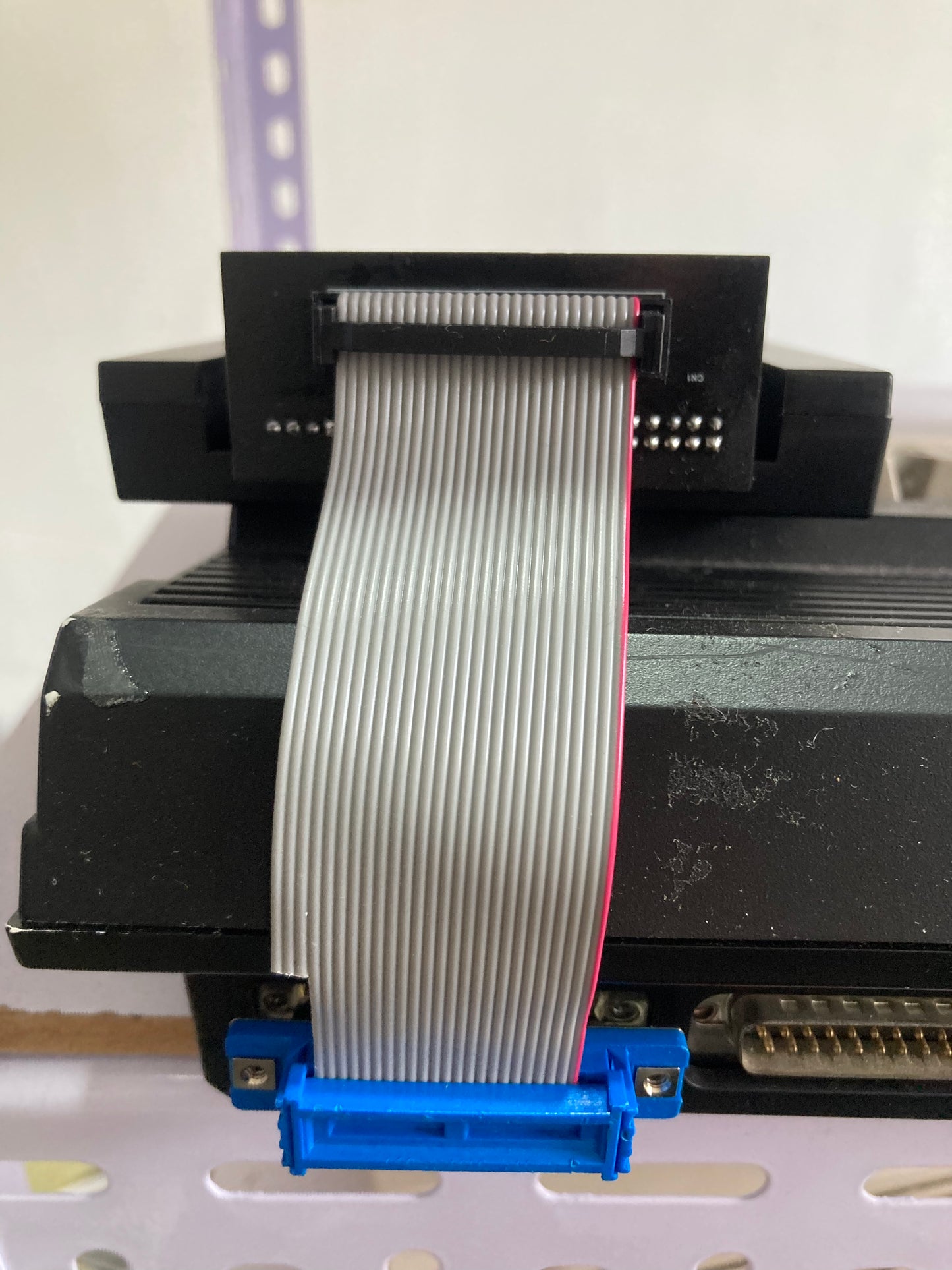

Black end on the interface you are connecting directly to your Gotek. Another blue end of interface your are connecting to Disk Drive Connector of the back of your Amiga. Please note that you have to remove one screw from the Disk Drive port as DB25 was used for this project with 2 PINs removed from DB25 connector (please see last photo on this listing).
Compatible:
- Amiga 500* (See more details below)
- Amiga 500+
- Amiga 600
- Amiga 1200
Please note that jumper on your Gotek has to be on 'S0' position.
You can boot from your Gotek external connected to Disk Drive connector from your Amiga 500+, 600, 1200. Simply please click right and left button mouse same time and in boot menu choose DF1. In Amiga 500 you can also use this external Gotek interface but then you will need a boot selector too which we also sell which can convert SEL0 and SEL1 signal and you can make your DF1 device bootable. Gotek Drive will be recognised as second Floppy Drive DF1 when connected to Disk Drive Connector and will be recocgnised as third DF2 and fourth DF3 when it is connectedto another external floppy drive.
